Spline shaft

@1. Durability
Thanks to GROB spline method, our hardness of the surface is getting harder ( more than Hv250 ) and its roughness is less than 0.7ƒÊ‚qmax, very smooth condition. The sliding movement of nut is excellent.
@‚QDMechanical Property

Fiber flow inside the shaft remains along the teeth profile . The micro structure of teeth bottom becomes dense. This feature gives the spline the strong fatigue strength.

The fiber, remained un-cutted, makes the mechanical property stronger.

Spline section
The fiber, remains un-cutted, makes it stronger
@‚RDGROB method

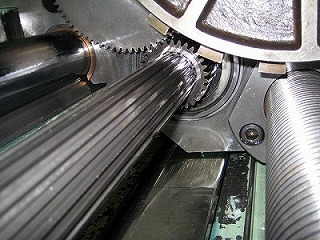

Spline driving shaft

@@@@@@@@@@@@@@

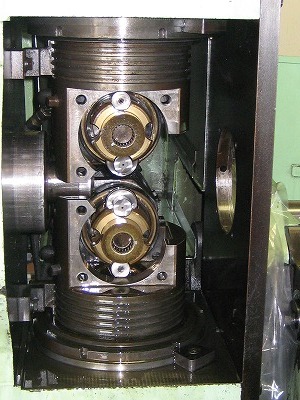

Spline threading rollers

@‚SDSpline accuracy
we supply the very excellent accuracy spline shafts
@‚TDPower transfer
The power transfer is very smooth using our spline and nut.
@‚UDOur products
ESquare splineiƒ³8`ƒ³100j
EInvolute spline
ESpline at the end of the parts
1 We can arrange the spline according to the order
2 We welcom a tailormade order
3 We offer according to the requirement
@7. Application
E machine industry, health machine and other machine and equipment
